Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china

Name: Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china
Brand: BinPeng
Price: 1 USD

Brand Name : BinPeng

Model Number : BP002

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : USD

Payment Terms : T/T

Supply Ability : 10 sets /45 days

Delivery Time : 40 days

Packaging Details : wooden box

Application : Kraft envelope file auxiliary equipment

Max envelope : Standard machine max 350X250+40mm-60mm length cover

Min envelope : Standard machine min 330X230+40mm-60mm length cover

Other size envelope : show data to us, we could do special design

Power : 1ph,220v,7kw

Speed : 30-45 per minuters

Envelope weight : 120-200 gsm

Contact Now

Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china

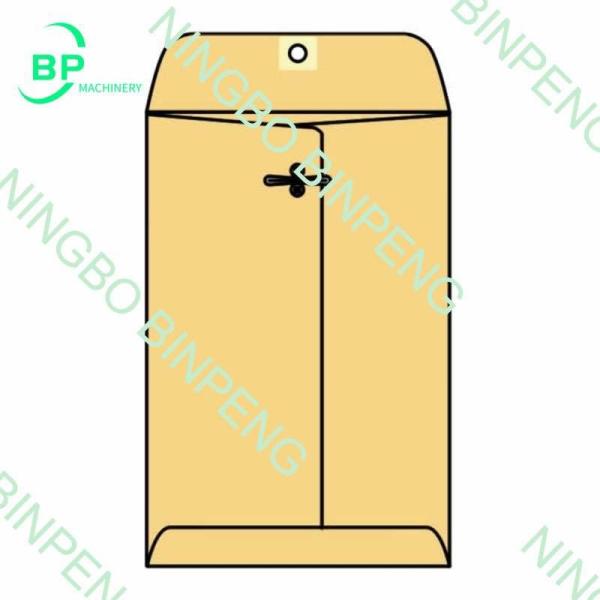

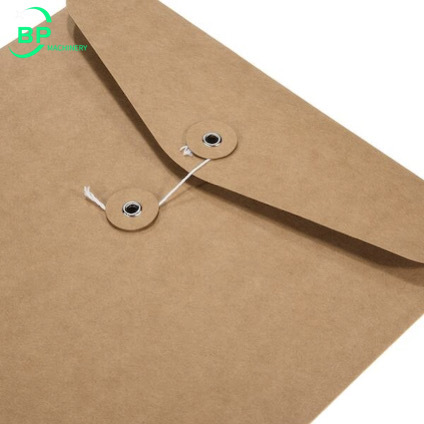

BP002 kraft envelope auxiliary machine is special made for Kraft envelope file which wanna hole perforate for button insert and string cuting for lock function ,detail check below finished picture :

Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china

Available produce: Lx W x bottom width 340x240 x40mm ,paper gsm 120-200gsm

L : 330- 350 mm ,W : 230 - 250 mm ,Bottom width 30-50mm ,cover width : 40-60mm

Technical data :

Speed	30-45 pcs/min
Envelope paper weight	120-200 gsm
Dimension	5500 x 2000 x 2000mm
Envelope size	See picture (customer made )
Power	1ph,220v ,7kw
Weight	1300KG

Machine main configuration

Support motor: 750W 7 sets.

②57 stepper motor: 2 sets.

③Touch screen control system: 3 sets.

④ Corner punching and punching all-in-one machine for assembly line: 2 sets.

⑤ Wire feeding and trimming system: 1 set.

⑥Paper feeding and paper cutting system: 2 sets.

Also for metal clasp insert machine for kraft envelope can check below link

https://www.bp-machine.com/sale-41024976-kraft-envelope-clasp-inserting-and-hole-punching-machine-bp001-made-in-china.html

Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china
